Jupiter Stage System
MEGAFORCE’s largest and most powerful modular stage system, engineered for international stadium tours, large-scale open-air productions, and landmark one-off concerts.
Modular. Powerful. Next level.
Designed and manufactured by MEGAFORCE
The system

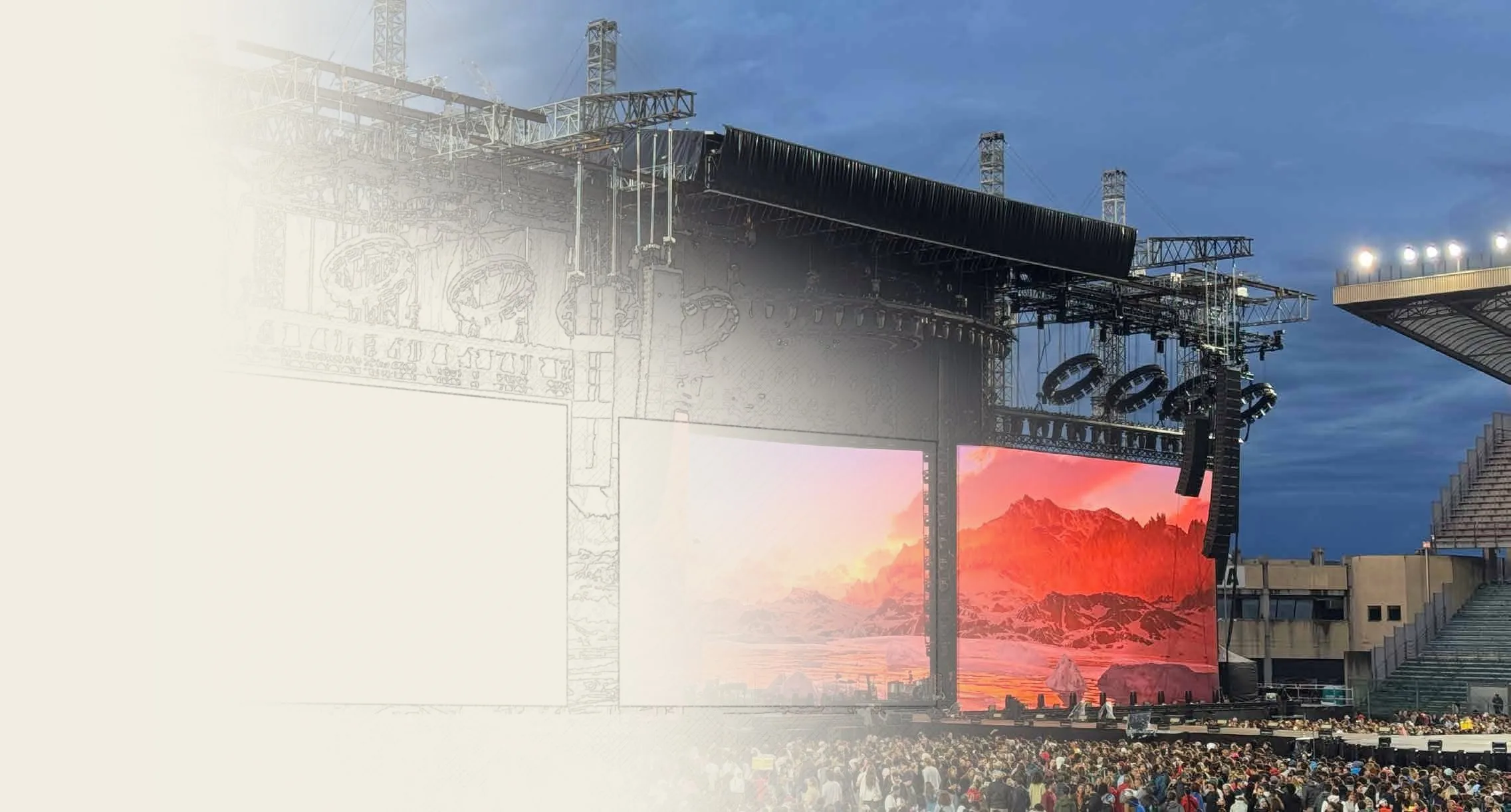

Built for stadium tours
With exceptional load capacity, expansive spans and heights, and a modular architecture that adapts to complex artist designs, Jupiter provides the structural freedom today’s biggest productions demand.
The system enables the seamless integration of extensive rigging, large-format IMAG and LED surfaces, technical equipment, risers, and production logistics, all within one cohesive stage structure.
Certified to German TÜV standards
Key figuresJupiter Stage System
Stadium power for international touring
Total rigging capacity*200 tapprox., UDL across the complete roof
Performance width24–30 m78.7–98.4 ft
Clearance19.5 mup to, 64 ft
Front cantilever5–6 m16.4–19.7 ft, depending on system
Rigging / production depth21.5 m70.5 ft
Rigging complete roof*approx. 200 t UDL
Clearance17.8–19.5 m58.4–64 ft
Rigging performance area*up to 100 t UDL
Performance area24–30 × 18.7 m
78.7–98.4 × 61.4 ft
* Depending on configuration and load distribution.
Every configuration individually engineered
Downstage capacityJupiter Stage System
We carry the heavyweights

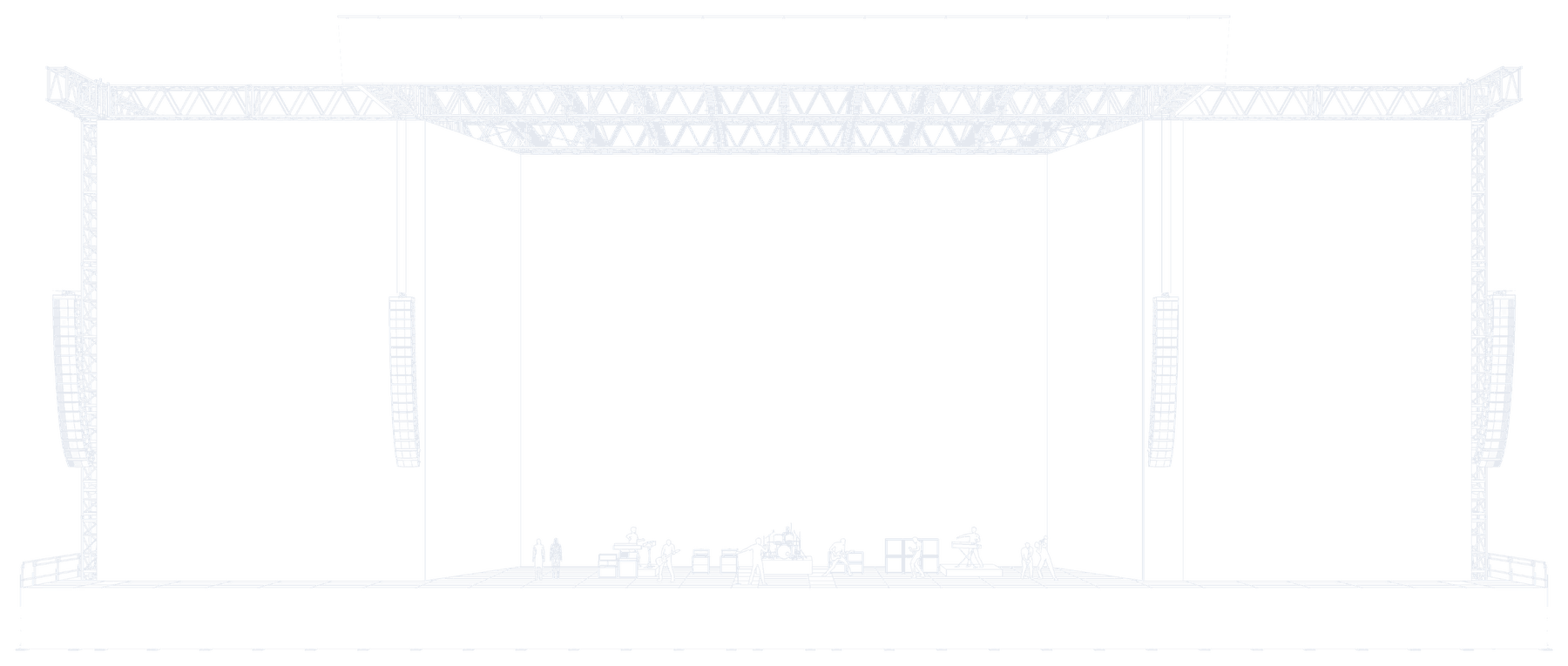

For modern productions hanging more and more of their show at the front of the stage: main PA, video, lighting, and scenic elements.

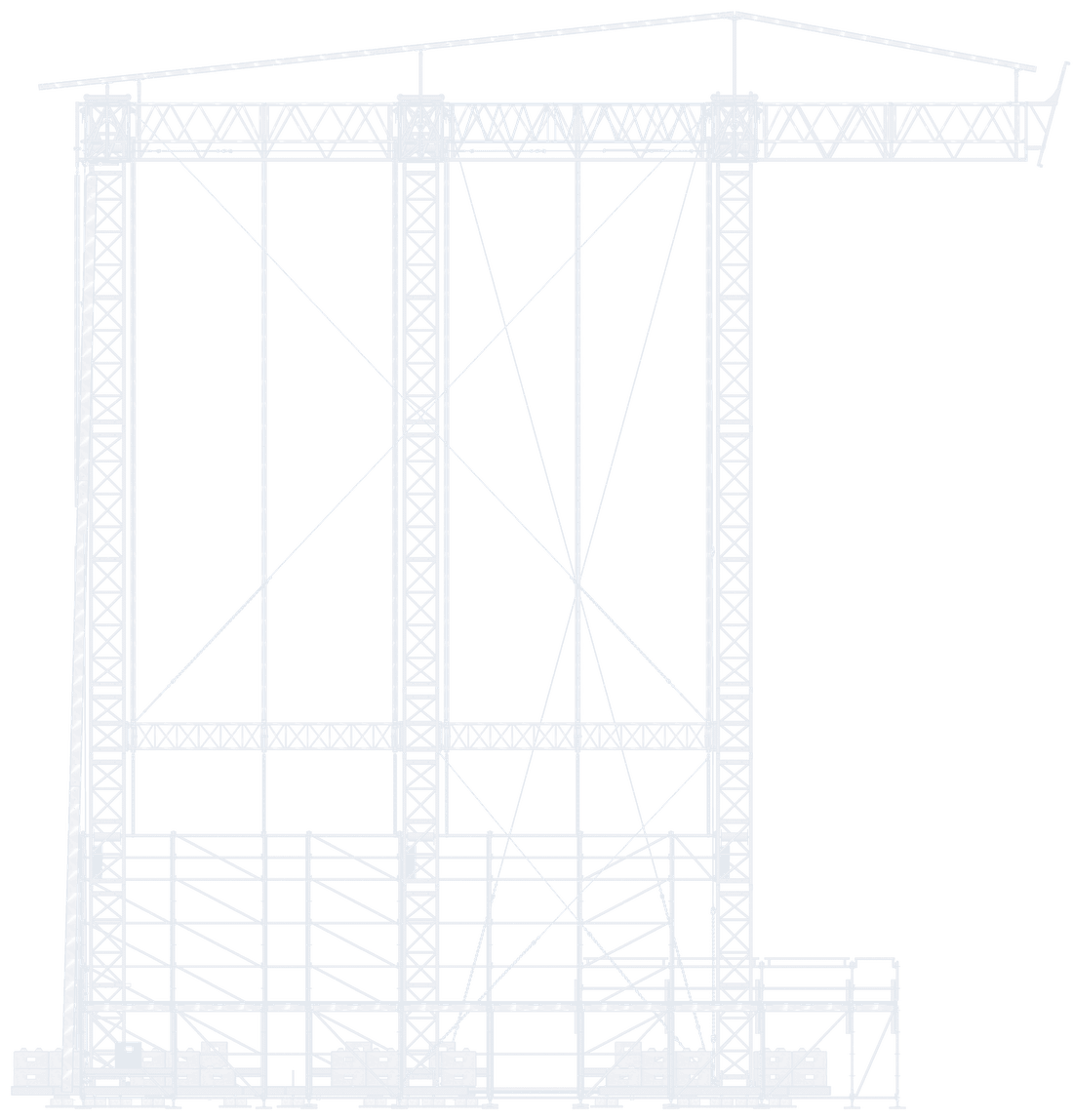

Jupiter’s two downstage towers carry a large share of the load. A front cantilever of up to 6 metres (19.7 ft), main PA hangs at the front corners, and high-capacity wings give designers the freedom to build forward.
Front cantileverJupiter I 6 mJupiter II 5 m19.7 ft · 16.4 ft
Stage floor height2.35 m7.7 ftdepending on railing layout
Rigging per wing*up to 28 t
Main PA hang (outrigger)*up to 7.5 tper side
* Depending on configuration and load distribution.
Built for downstage-heavy productions
Key points · Size, rigging, modularity
Ultimate size and presence
Performance widths from 24 to 30 metres (78.7 to 98.4 ft) and clearance heights of up to 19.5 metres (64 ft). A dominant architectural presence designed for the world’s biggest productions.
Extreme rigging capacity
Approx. 200 t UDL across the complete roof, up to 100 t UDL above the performance area, and up to 28 t per wing.* Built to support complex and exceptionally heavy show designs.
Artist-led modularity
24, 27, or 30 m (78.7, 88.6, or 98.4 ft) performance width, straight or angled wings, wings and portals in different dimensions, front cantilevers of up to 6 metres (19.7 ft). Adaptable to individual artist, production, and venue requirements.
* Depending on configuration and load distribution.
Key points · Screens, productions, weather
Designed for the biggest screens
Engineered for extensive IMAG and LED installations. High-capacity wings carry large-format video surfaces; straight wings enable classic screen layouts, angled wings improve sightlines from the sides.
Built for complex productions
Barrier-free passages for technical equipment, risers, and production logistics. Seamless integration of lighting, audio, video, automation, and scenic elements. Designed to support fast and efficient production workflows.
Weather intelligence and certified safety
Weather-exposed areas protected with black PVC coverings. Integrated weather monitoring with WLAN access, fully operational at wind speeds of up to 20 m/s. Designed and manufactured by MEGAFORCE, certified to German TÜV standards.
Configuration rangeJupiter Stage System
One system, every show format
The Jupiter Stage System does not follow a set of predefined configurations. Its dimensions, heights, wings, and portal geometries can be combined and adapted across the system’s full range.
Covered production area
Performance width
Total width
Covered production area
Performance width
Total width
Covered production area
Performance width
Total width
Covered production area
Performance width
Total width
Covered production area
Performance width
Total width
Covered production area
Performance width
Total width

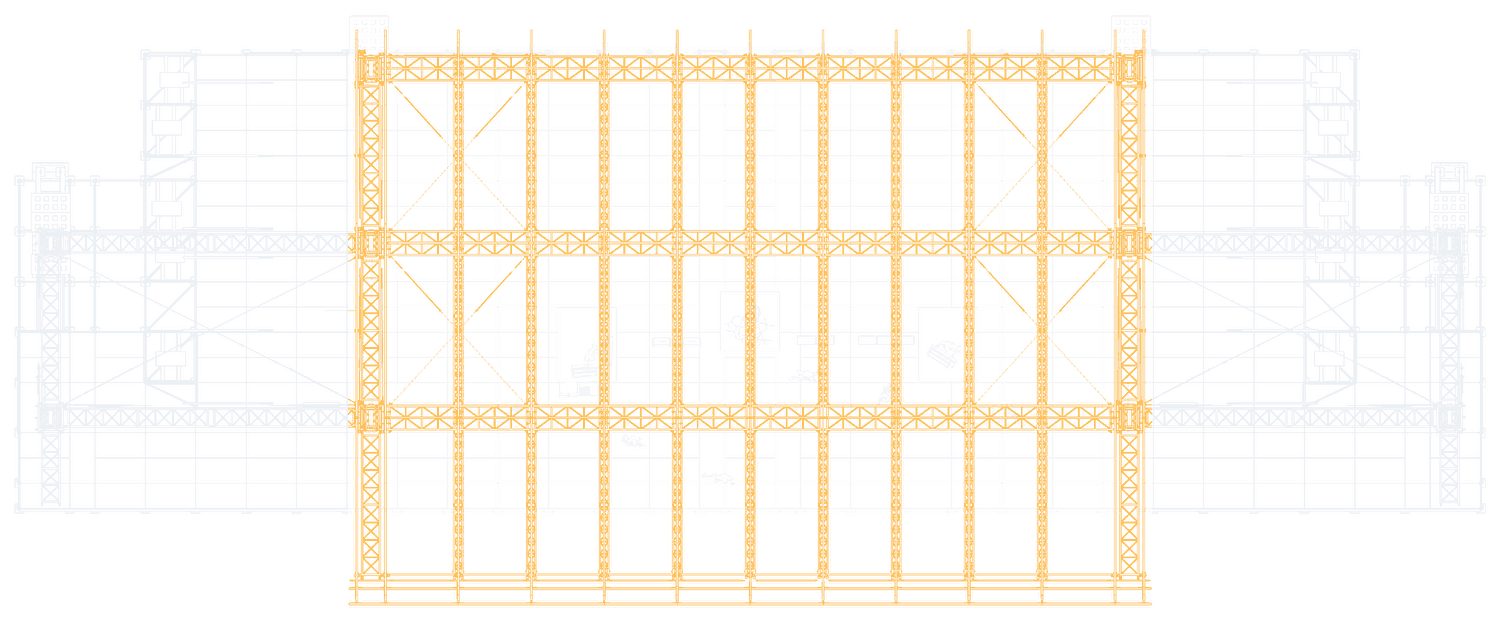

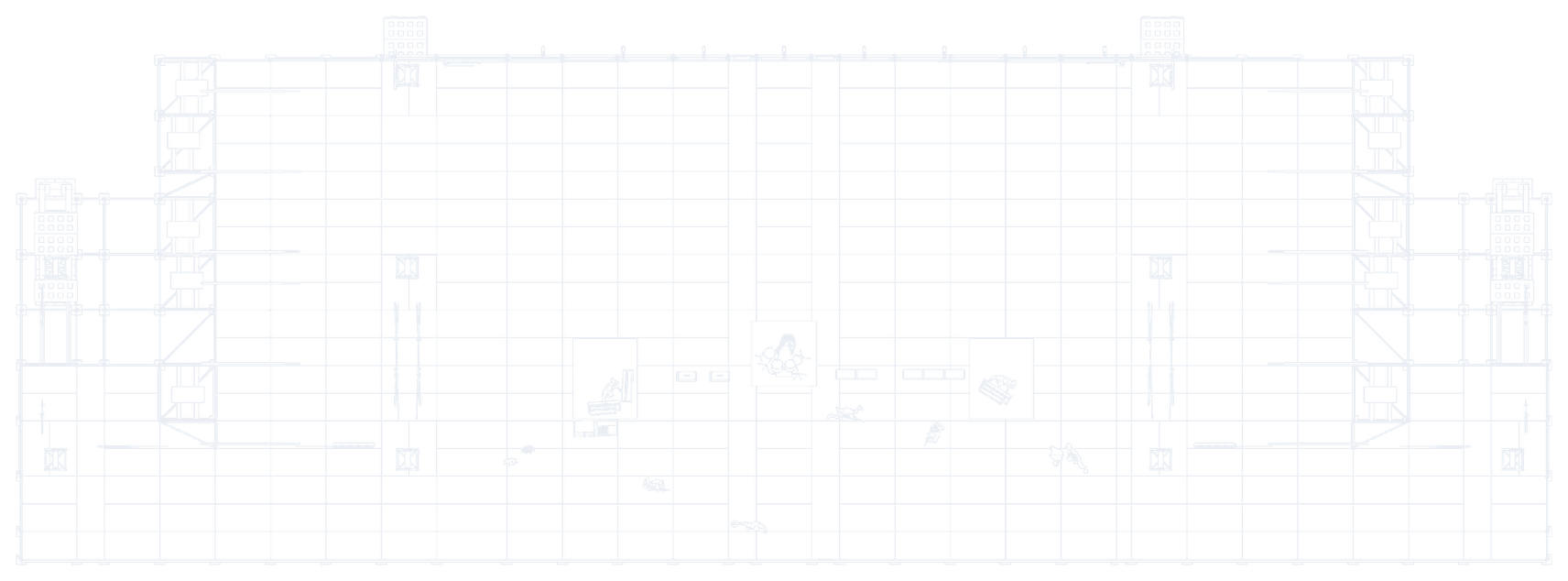

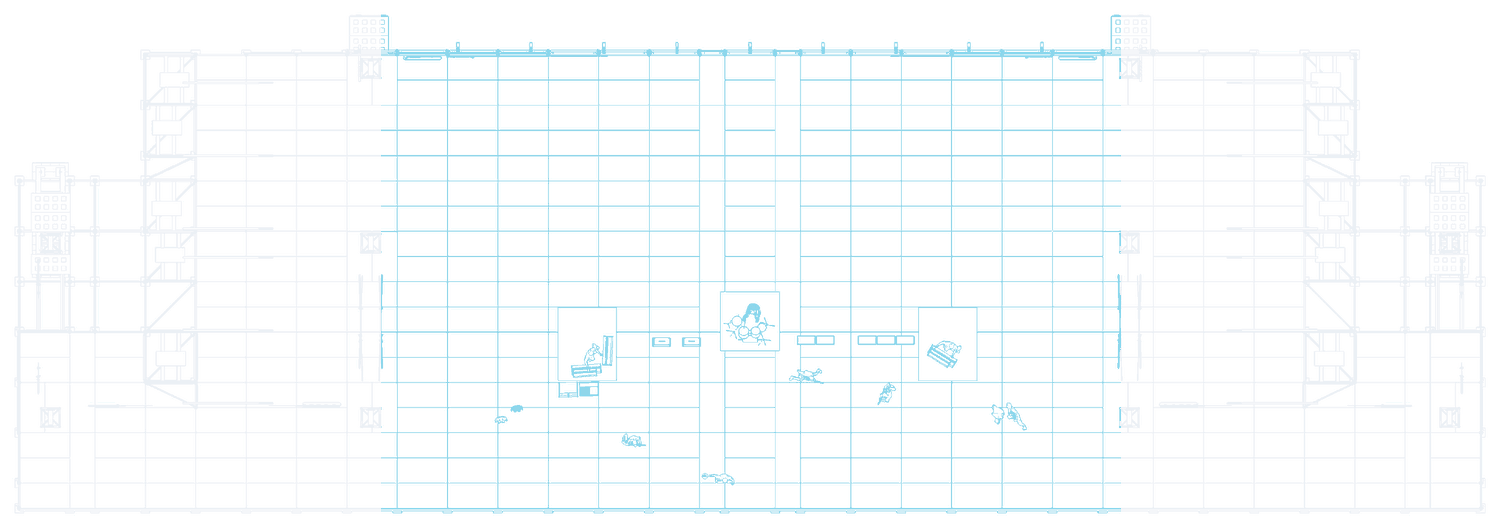

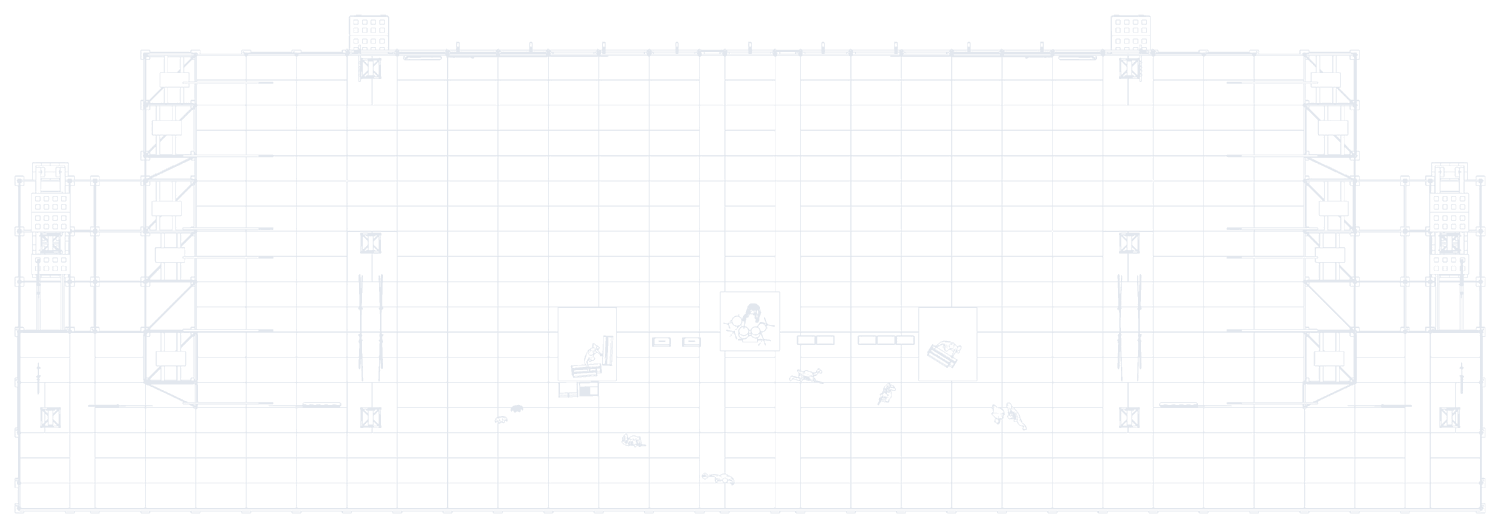

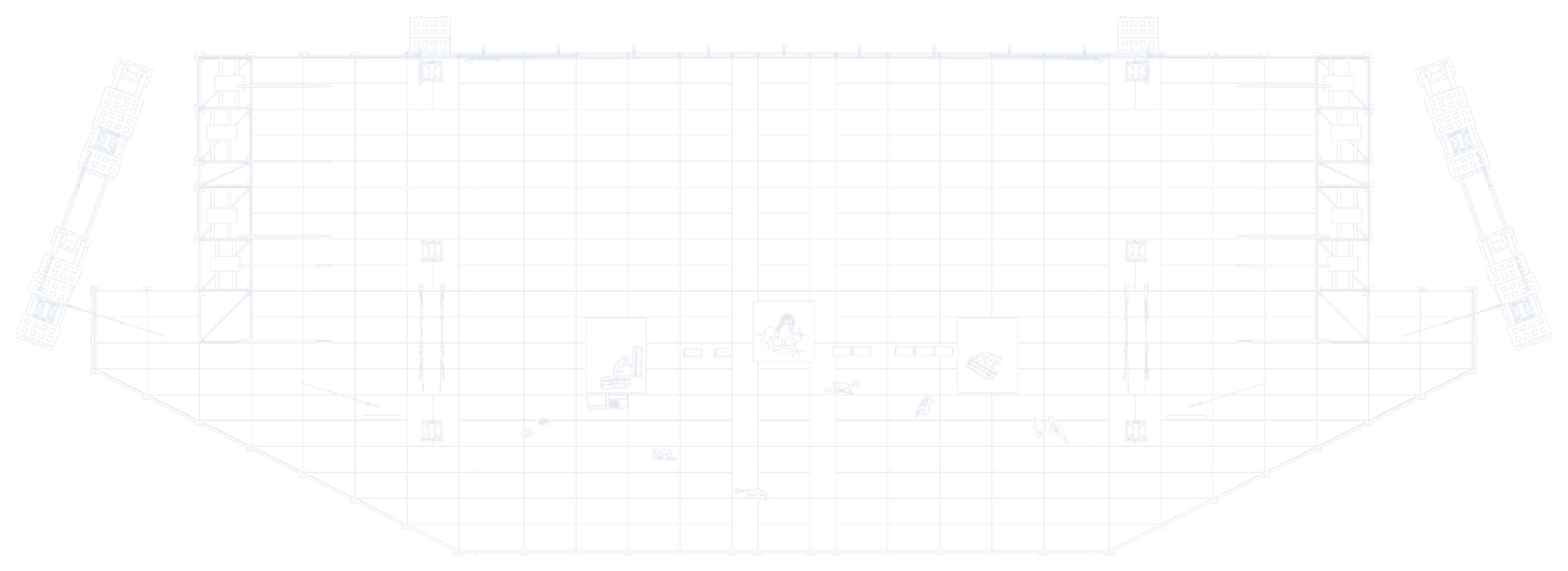

Top view to scale for the selected performance width.
Selected
Performance width
Total width
Covered production area
Front cantileverJupiter I 6 m · Jupiter II 5 m19.7 ft · 16.4 ft
Across the rangeRigging depth 21.5 m (70.5 ft) · Tower 19.5 or 21 m
(64 or 68.9 ft) · Wings 9 or 12 m (29.5 or 39.4 ft) · Stage floor 2.35 m (7.7 ft, depending on railing layout)

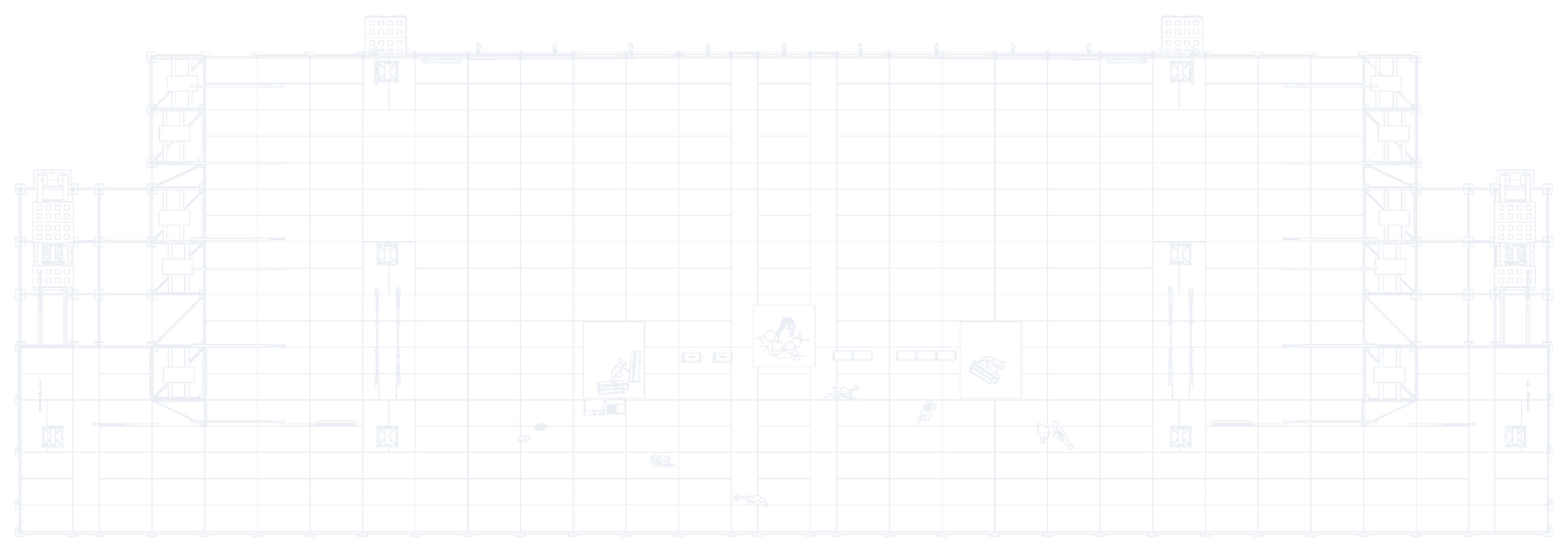

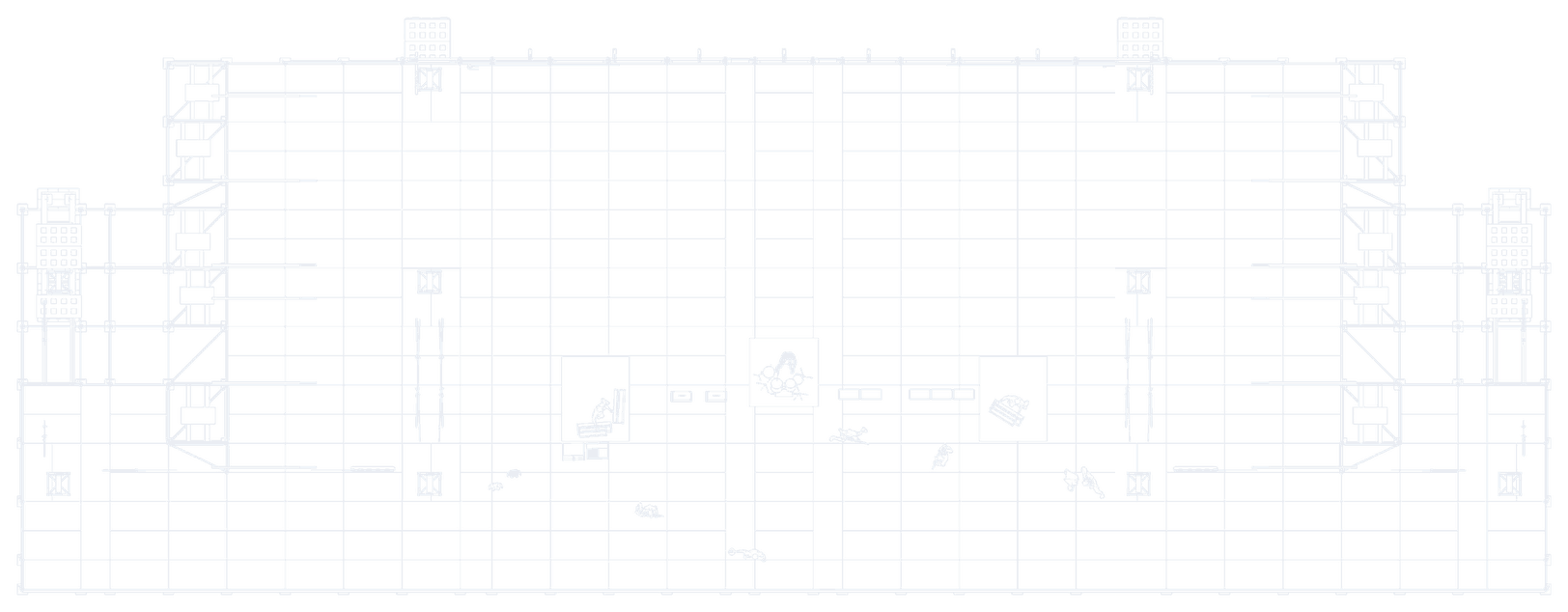

Maximum impact for classic stadium layouts
- Straight wings for traditional large-format IMAG and LED installations.
- Clear and symmetrical stage architecture.
- Maximum space for production, technical equipment, and media integration.
- Ideal for international stadium tours and large-scale one-off concerts.
- Configurable to match different production widths and venue requirements.

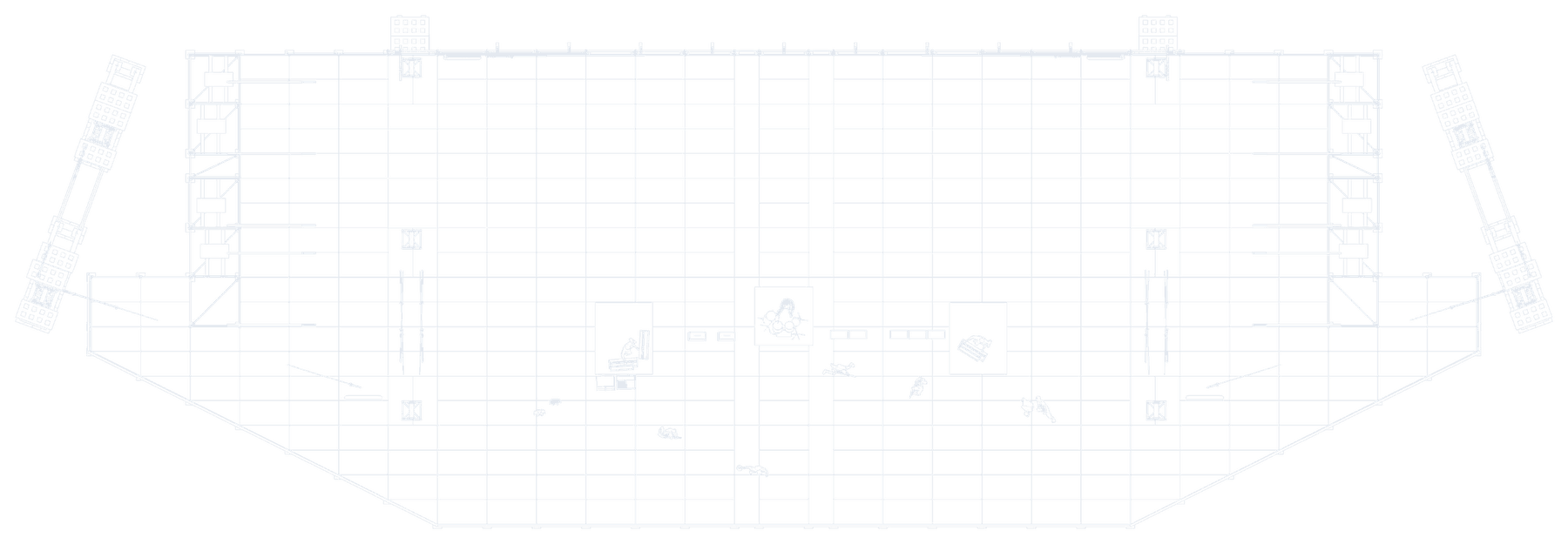

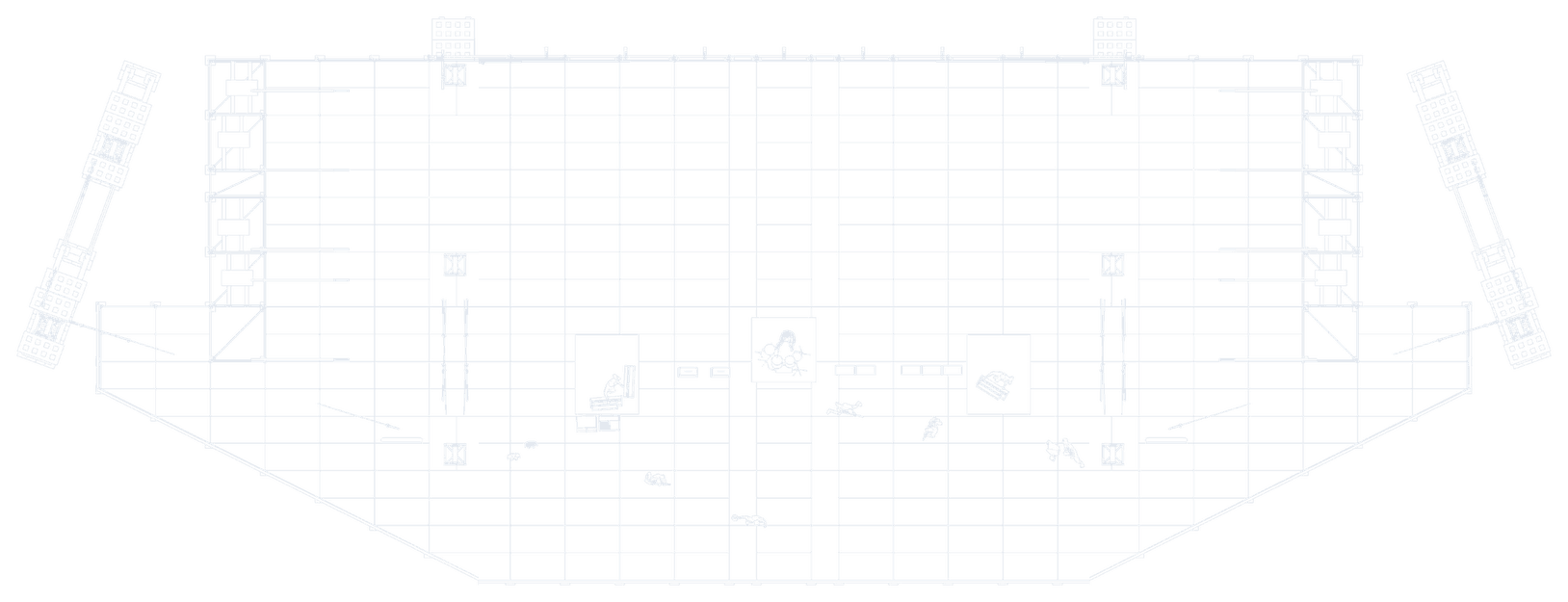

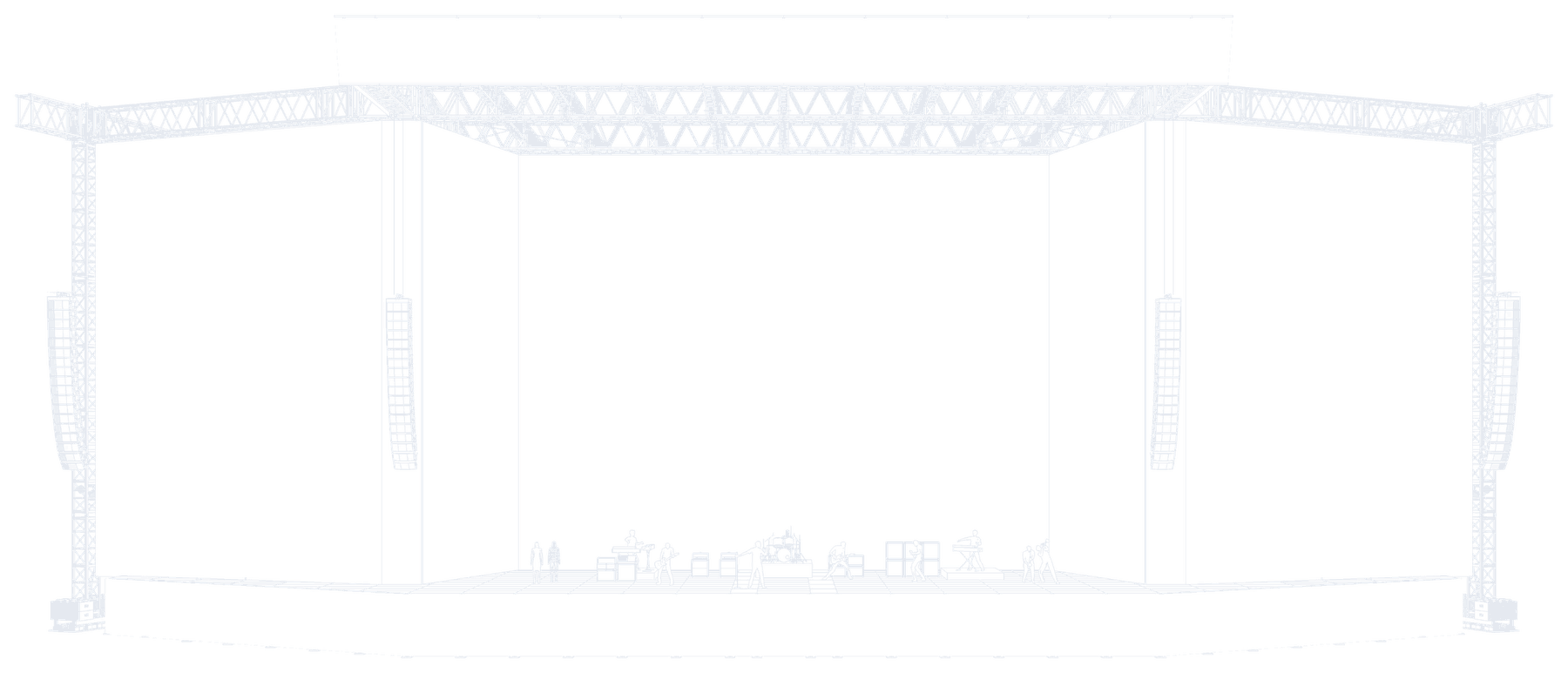

Optimized sightlines and greater audience capacity
- Angled wings provide improved sightlines from the sides of the venue.
- More open viewing angles can increase the number of sellable seats.
- Wing and portal geometry can be adapted to the individual venue.
- Ideal for productions requiring a balance between large video surfaces, stage design, and audience capacity.
- Available with straight or angled cantilevers.
Sightlines planned from the first draft
Two systems, one touring standard
Engineered for touring across Europe
Designed and built at our headquarters in Weingarten, Germany. From the 2027 season, two Jupiter Stage Systems are available for major productions across Europe.
In service since 2025
Jupiter I
Touring major stadium productions across Europe.
Front cantilever 6 m 19.7 ft
From the 2027 seasonJupiter II
A second system for parallel tours across Europe.
Front cantilever 5 m 16.4 ft
Jupiter II · from 2027, across Europe
Maximum freedom for stadium-scale productions
One system
One system
Built around every show
The Jupiter Stage System is a high-capacity structural platform, designed around the artist’s production.
Its modular spans, exceptional clearance, straight or angled wings, open technical passages, and extensive load reserves allow production designers to integrate complex scenic, video, lighting, audio, and automation concepts without forcing the show into a predefined stage architecture.
From classic end-stage layouts with extensive IMAG surfaces to custom portal geometries and highly individual production designs, Jupiter can be adapted to the artistic vision, venue, and touring requirements of each project.

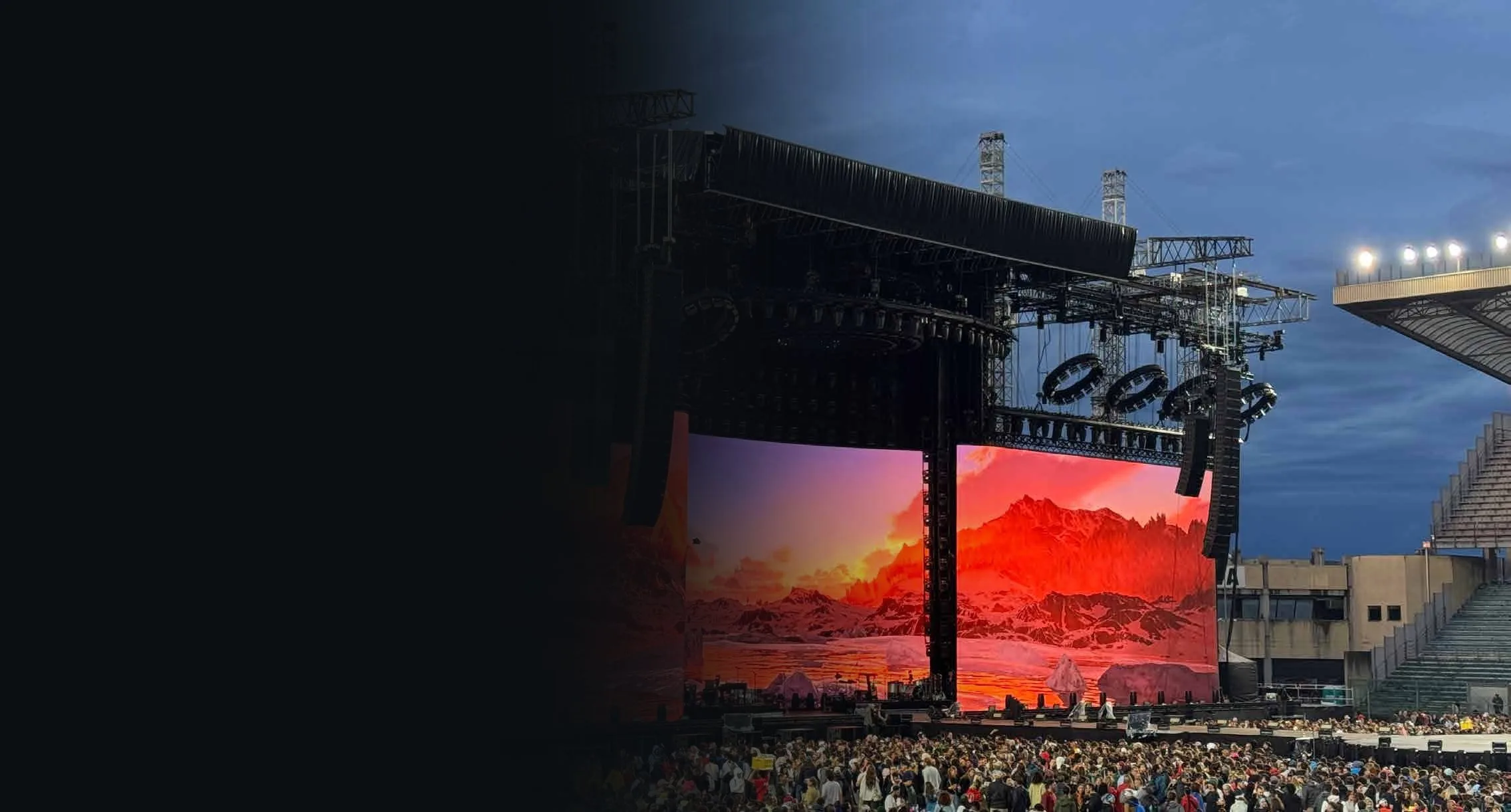

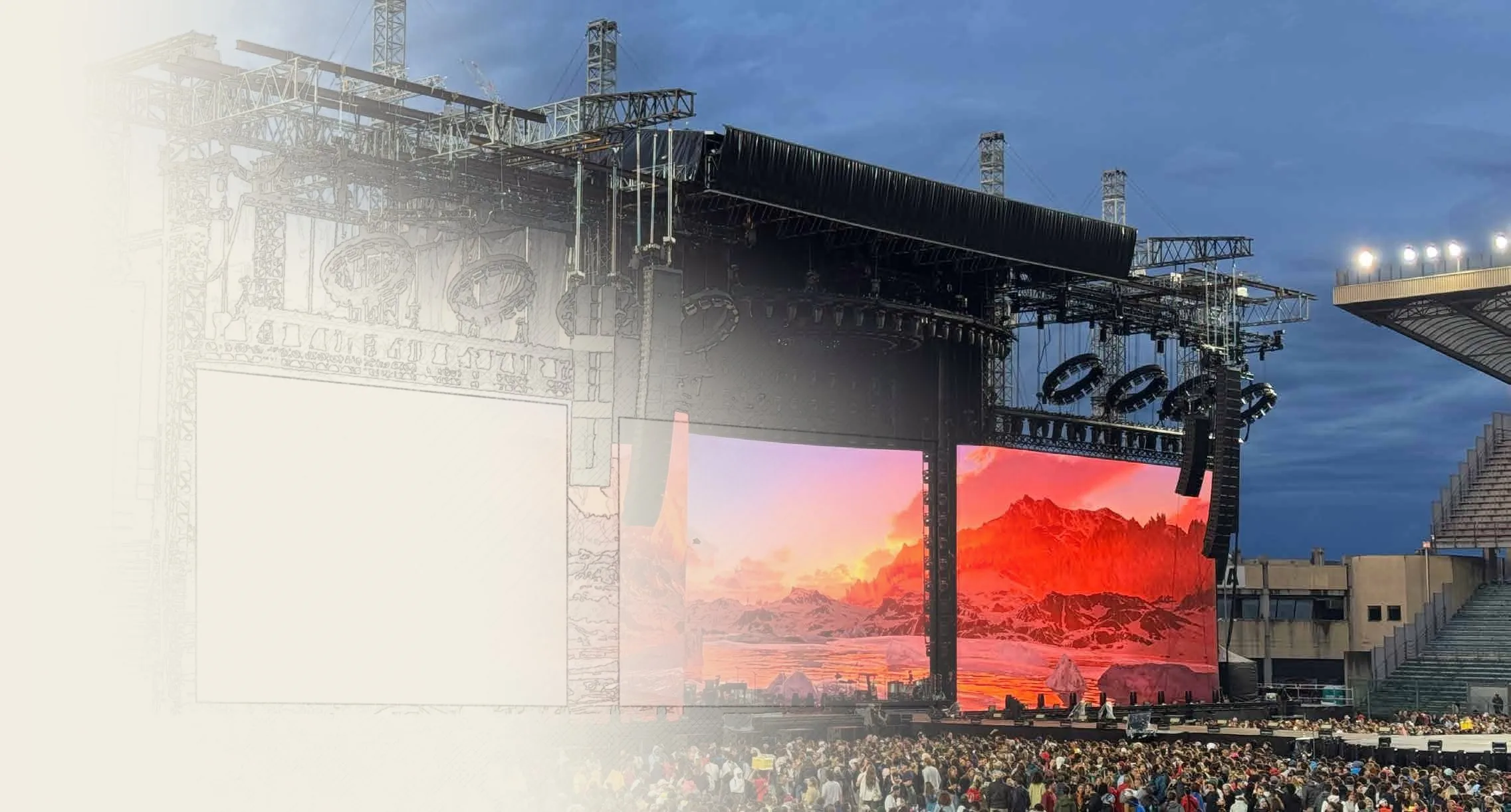

First deployed in 2025 and proven again in 2026, Jupiter has supported major stadium productions for international headline artists including Iron Maiden.
First deployed 2025, on tour again since 2026

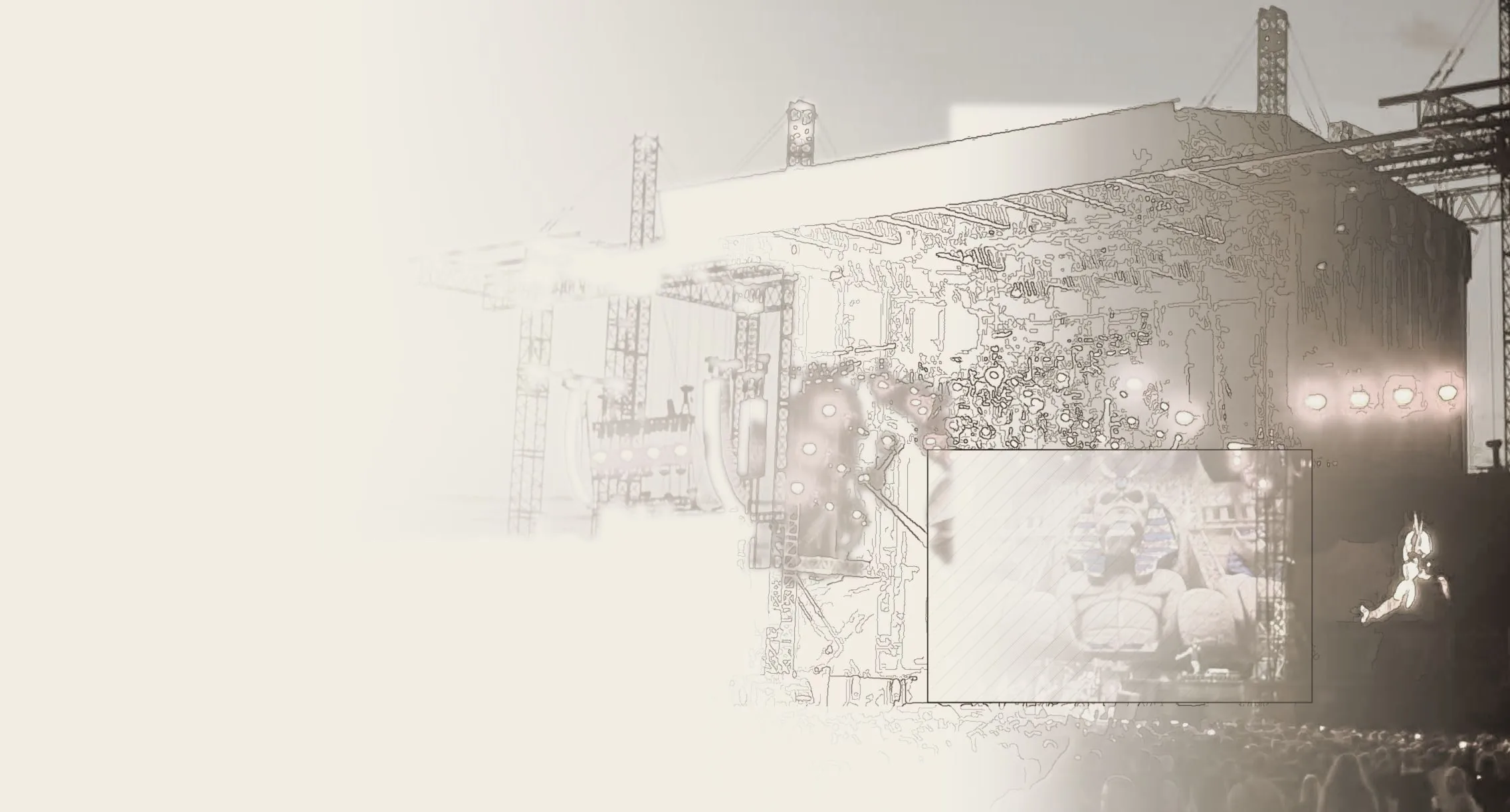

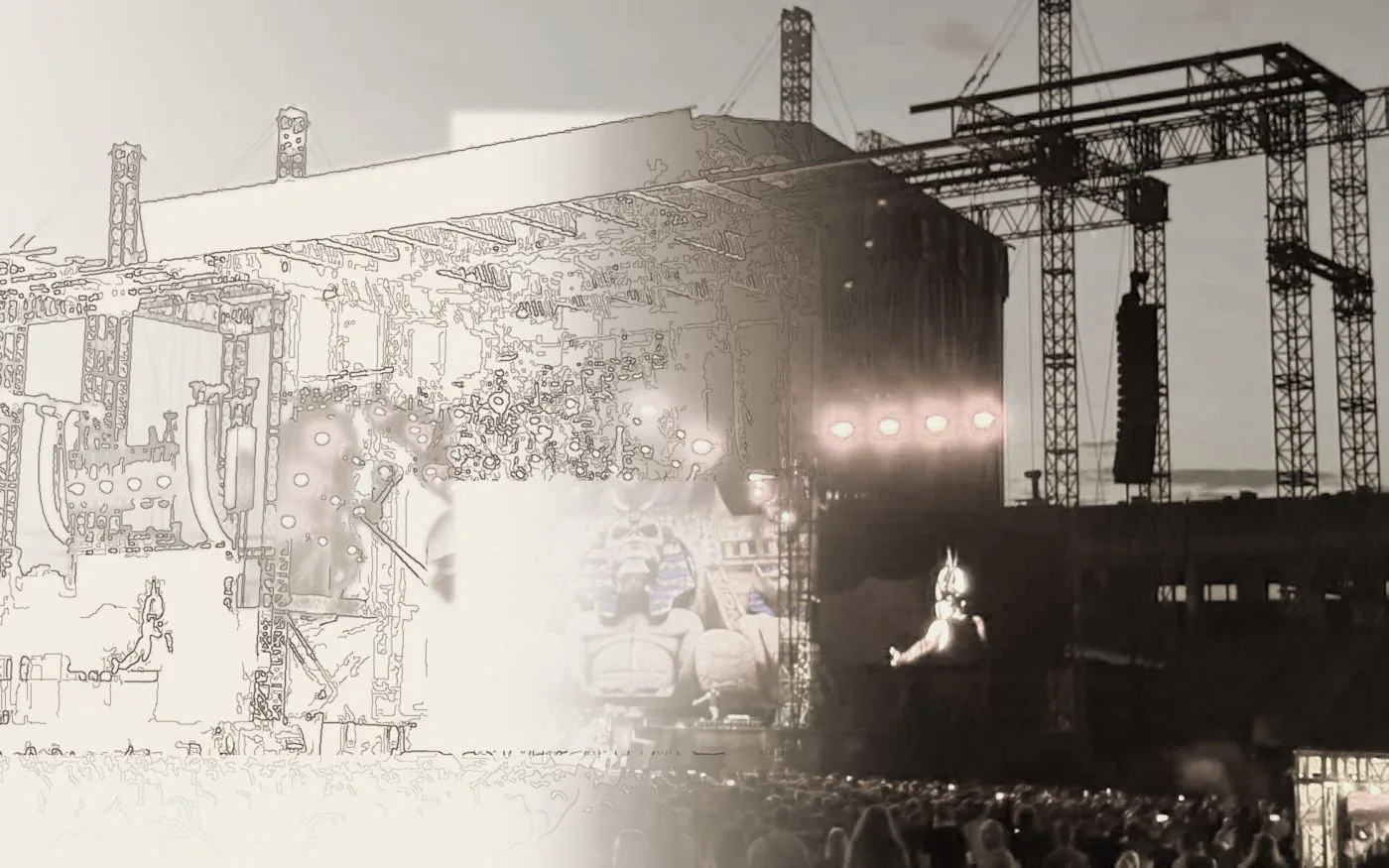

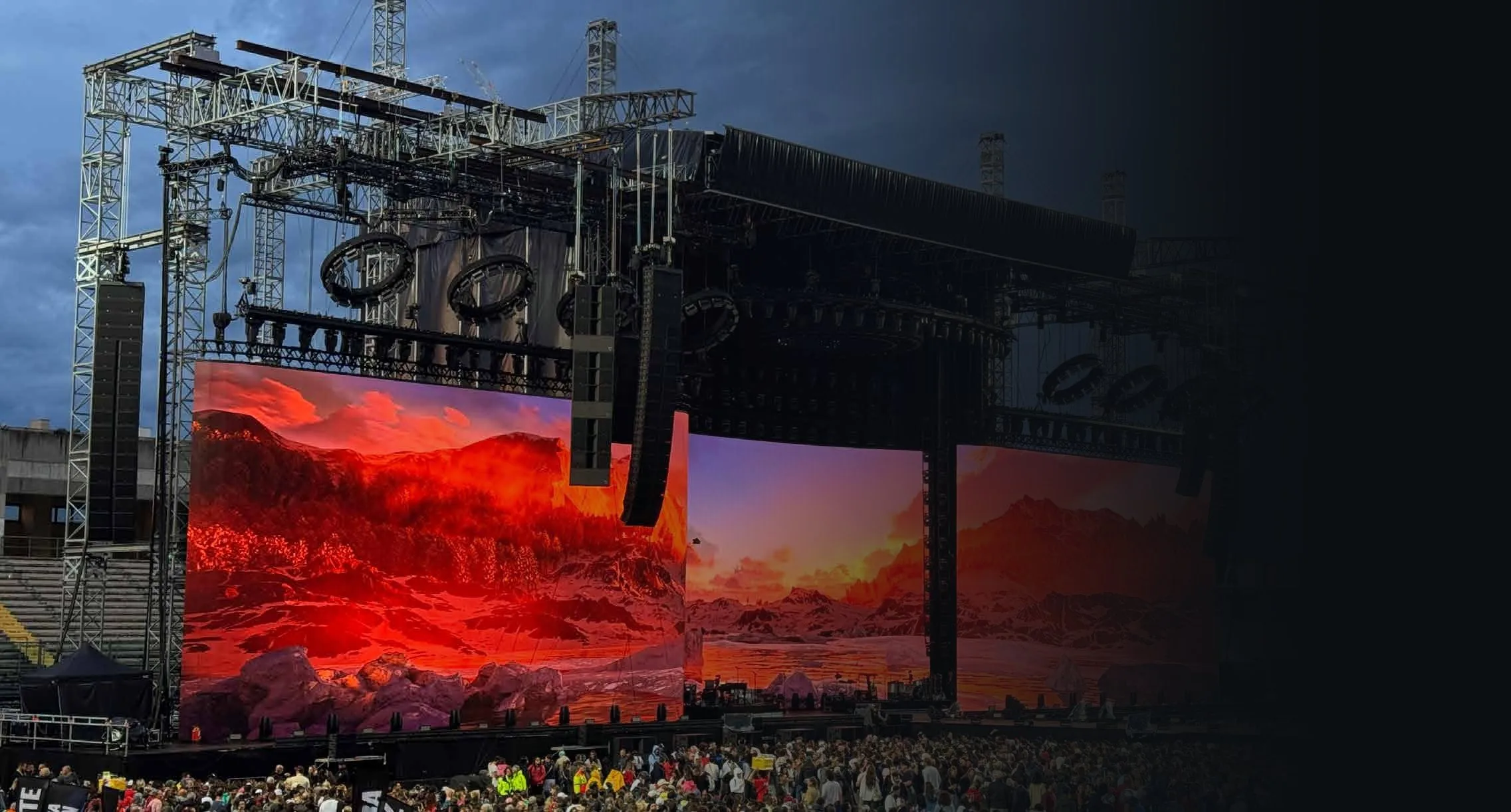

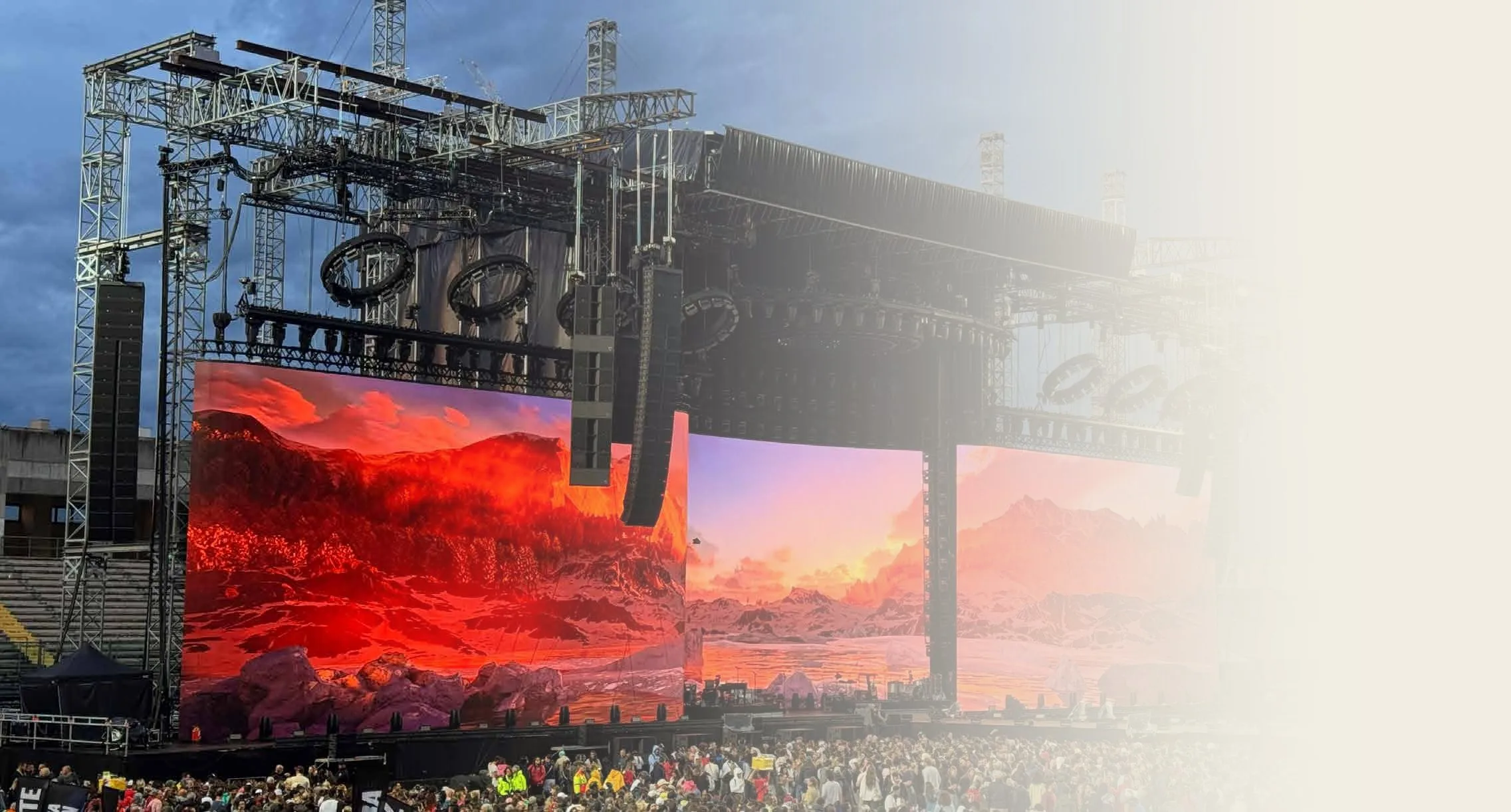

Iron Maiden · Stadio Euganeo, Padua
Iron Maiden · Stadio Euganeo, Padua
SpecificationsJupiter Stage System
Specified for your show
Units
| Measure | Value |
|---|---|
| Roof | |
| Rigging depth | 21.50 m70.5 ft |
| Tower height | 19.5 or 21 m64 or 68.9 ft |
| Clearance | 17.8–19.5 m58.4–64 ft |
| Front cantilever | Jupiter I 6 m · Jupiter II 5 m19.7 ft · 16.4 ft |
| Total rigging capacity* | approx. 200 t UDL |
| Rigging performance area* | up to 100 t UDL |
| Rigging per wing* | up to 28 t |
| Rigging per outrigger / main PA* | up to 7.5 t |
| Stage | |
|---|---|
| Total stage area | 48–60 × 21.50 m157.5–196.9 × 70.5 ft |
| Performance area | 24–30 × 18.7 m78.7–98.4 × 61.4 ft |
| Wings | 9 or 12 m29.5 or 39.4 ft |
| Stage floor height, depending on railing layout | 2.35 m7.7 ft |
Configuration options: 24, 27, or 30 m (78.7, 88.6, or 98.4 ft) performance width, 19.5 or 21 m (64 or 68.9 ft) tower height, 9 or 12 m (29.5 or 39.4 ft) wings, straight or angled wing layouts, straight or angled cantilevers, and custom portal and show integration.
* Depending on configuration and load distribution.
Designed and manufactured by MEGAFORCE
Contact
Talk to us about your next show or tour
One system, built around every show. Our team supports you from the first routing draft to the technical planning, calculation, and realisation of your production.
Thank you for your time.We look forward to bringing the Jupiter Stage System to your production.
